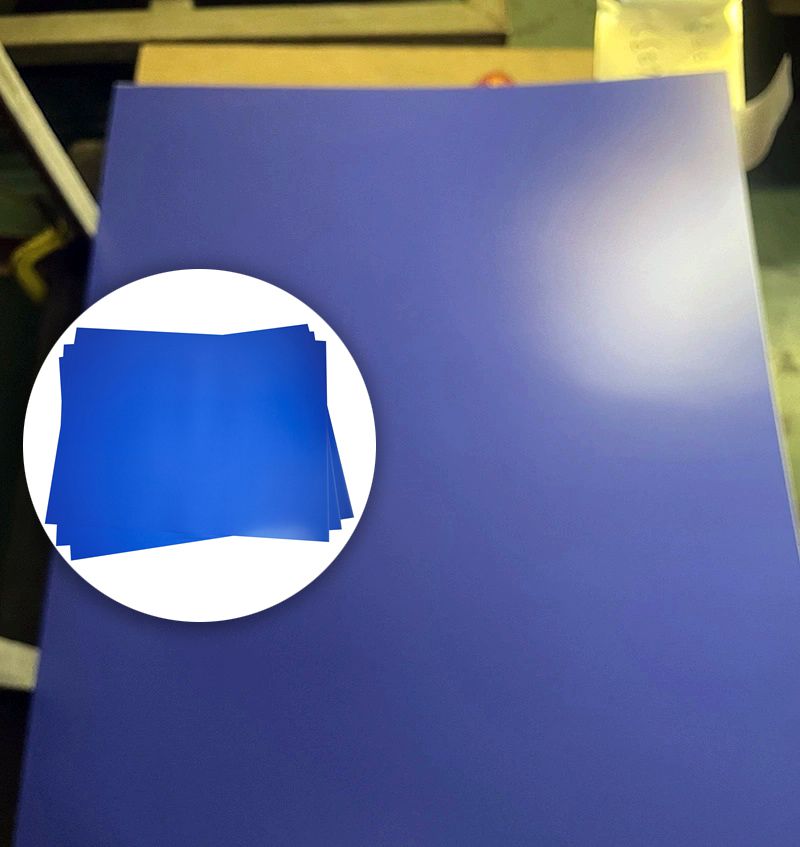

Processless thermal CTP plate, also known as Processless CTP plate, refers to plate material (produced by Hongchang) that, after exposure imaging on a direct plate making equipment, does not require any subsequent processing steps and can be printed directly on the press. This means it does not need chemical developing and washing, making it a truly processless plate material. The use of processless CTP plate allows for enhanced competitiveness, cost reduction, increased efficiency, and achieving "green" printing.
Processless thermal CTP plate does not require the use of developing solution, fixing solution or any other chemicals, thereby avoiding waste liquid discharge and environmental pollution, meeting the requirements of green environmental protection, hence also known as "green environmental printing plate".
Features
Advantages of processless CTP plate:
1. Improved production efficiency with high tolerance and accurate dot reproduction
2. Chemical-free, environmentally friendly
3. Higher run length, high quality
4. Outstanding performance for UV printing
5. Better scratch resistance
6. Can be operated in daylight conditions
Applications
Applications of processless CTP plate:

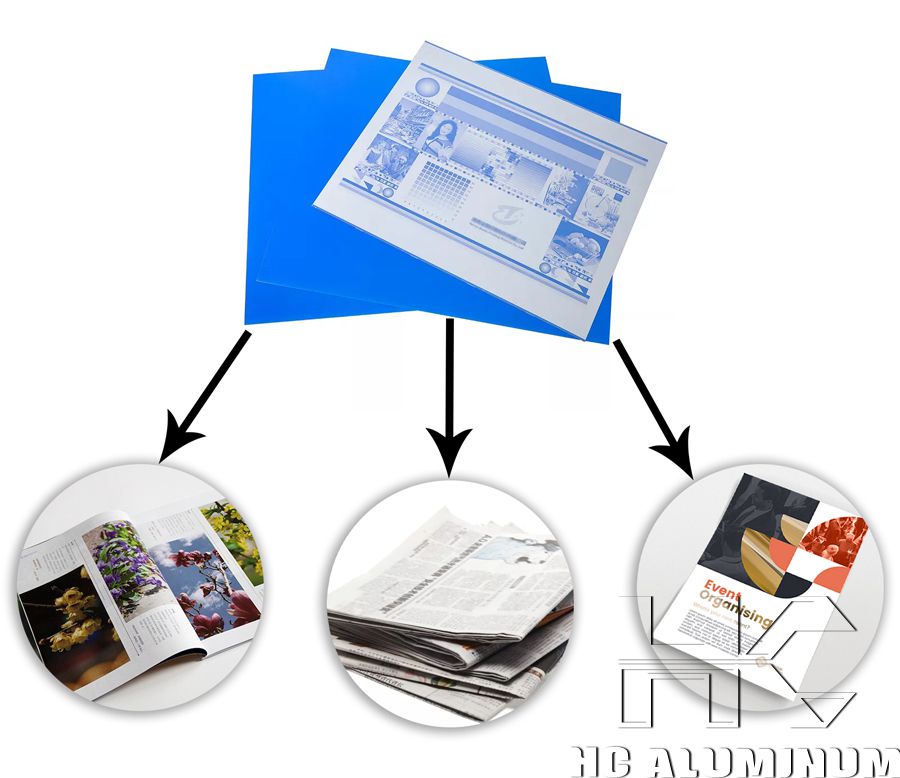

Processless thermal CTP plate is widely used in commercial printing, packaging printing, newspaper printing and other fields.
CTP board substrate
In the production process of CTP plate material, aluminum plate base is one of its important raw materials, and its quality directly affects the production of CTP plate and the quality of plate material. Currently, domestic aluminum materials used in CTP plate production include 1050, 1050A, 1060, 1070, 1100 etc. CTP plate has certain requirements for the chemical composition, mechanical properties, thickness and width accuracy of the aluminum plate, surface roughness of the aluminum plate, burrs on the edges, as well as other parameters.
Basic standards for CTP/PS plate base:
| Alloy series | 1 series |
| Typical alloys | 1050A, 1060, 1070, 1100 |
| Temper | H18 |
| Thickness | 0.13-0.40mm |
| Width | 650-1420mm |
| Length | Customizable |
| ID | 305mm/405mm/505mm (Customizable) |
| Application areas of CTP plate base | Positive PS plate, thermal CTP plate, photosensitive CTP plate, UV-CTP plate and other offset printing plate materials. |
Characteristics of 1050/1060 aluminum plate for processless CTP plate:
1. Corrosion resistance: Aluminum alloy has good corrosion resistance, meeting the durability requirements for the plate base during the printing process.
2. High flatness: Advanced processing equipment and production processes ensure a highly flat surface of the CTP plate base, improving printing quality.
3. Good machinability: Aluminum plate has good machinability, making it convenient for customers to use.
Packaging
· 0.15mm 100 pieces/box, 70 boxes/pallet
· 0.30mm 50 pieces/box, 35 boxes/pallet
