How to Choose the Right CTP Plate Thickness?

Understanding What a CTP Plate Is

A CTP plate (Computer-to-Plate) is a digital imaging plate used in modern offset printing to replace traditional PS plates (Pre-Sensitized Plates).
CTP technology eliminates the "film" and "plate exposing" steps required in conventional prepress, achieving a direct digital workflow from computer to printing press.

1. How a CTP Plate Works

A CTP system uses laser beams controlled by a computer to directly burn or image the graphic information onto the coated layer of the plate.
After imaging, the plate goes through development (or no processing for processless plates) and becomes press-ready.

2. Basic Structure of a CTP Plate

A typical CTP plate consists of three layers:

(1). Substrate (Base Material)

The core material, usually high-purity electrolytic / mechanical-grained aluminum.
It provides mechanical strength and rigidity -and its thickness is the essential parameter for plate selection.

(2). Coating (Imageable Layer)

A photosensitive chemical coating applied on the aluminum base.

Thermal CTP plates use thermopolymer or thermal-decomposition coatings

Violet CTP plates use photopolymer coatings

(3). Protective Layer

Protects the coating from scratches, oxidation, and contamination during handling and storage.

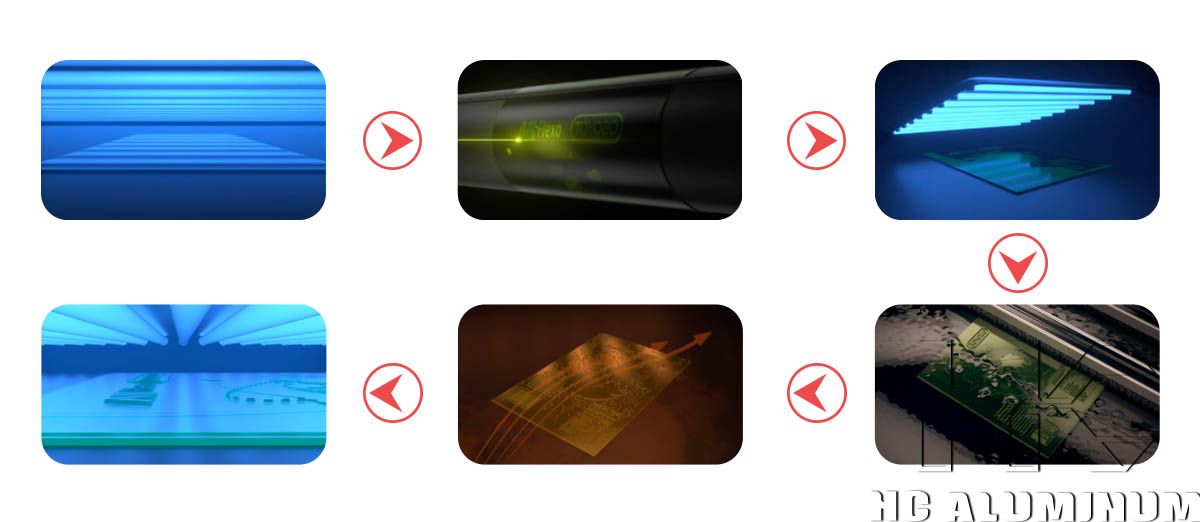

3. CTP Plate-Making Process

• Backside exposure

• Laser imaging

• Main exposure

• Development/cleaning

• Drying

• Post-exposure

4. Types of CTP Plates

CTP Plate Thickness

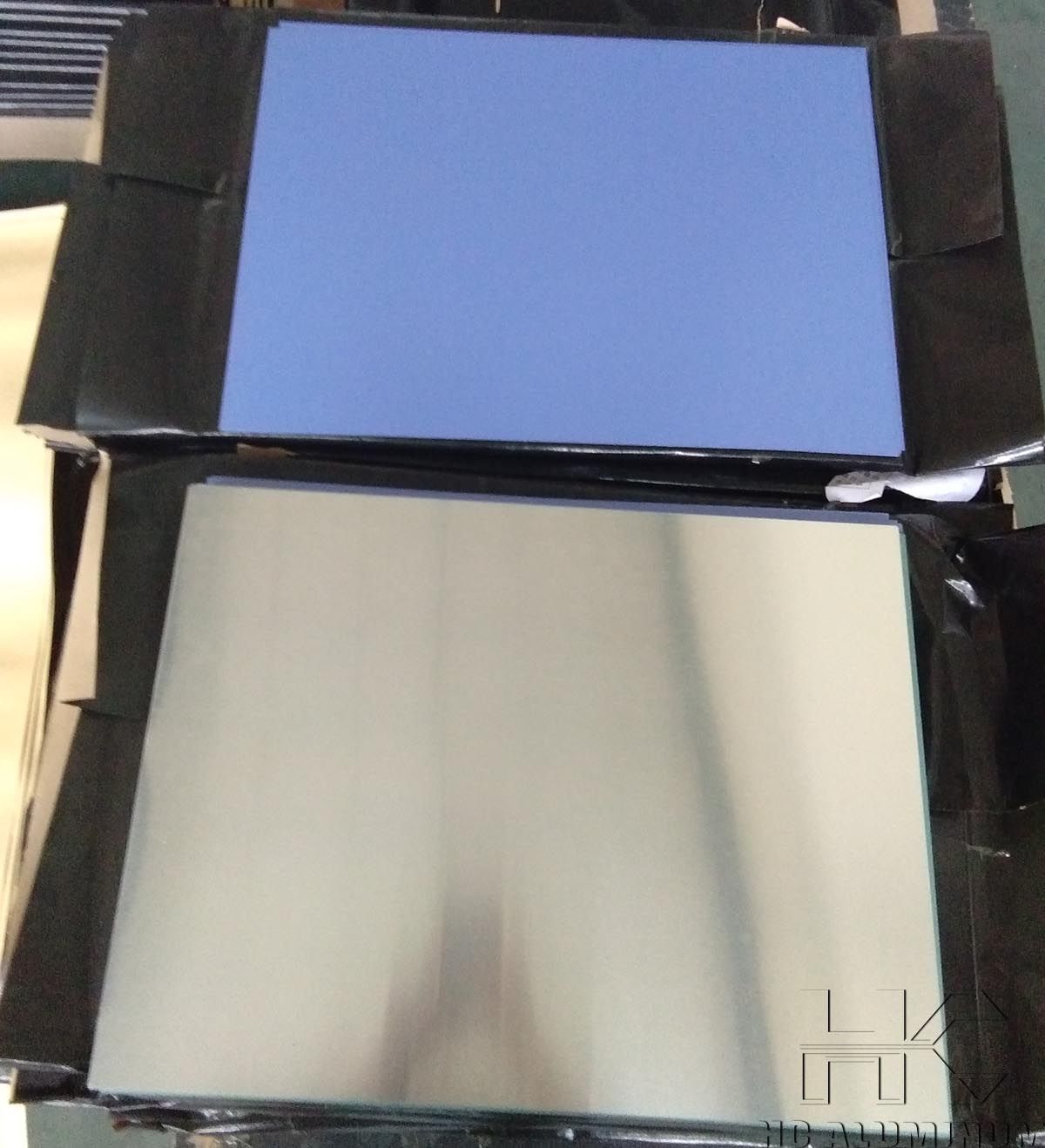

CTP plate thickness refers to the aluminum substrate thickness, measured in millimeters (mm) or microns (μm).
Different thicknesses provide different levels of compressive strength, durability, stability, and press compatibility.

Common CTP plate thicknesses include:

• 0.15 mm (150 μm)

• 0.20 mm (200 μm)

• 0.25 mm (250 μm)

• 0.30 mm (300 μm)

These specifications cover newspaper, commercial printing, book publishing, and high-end packaging applications.

Five Key Factors That Determine the Right CTP Plate Thickness

1. Printing Press Specifications and Model Compatibility

Each printing press's plate clamps and cylinder packings are designed for printing plates of specific thicknesses. Consult the equipment manual; a mismatch in thickness can lead to cylinder damage or serious registration problems.

2. Print Run Length & Plate Durability Requirements

Plate thickness has a direct impact on durability.

For long printing runs (hundreds of thousands of print runs): 0.30 mm is recommended. Thicker plates are more rigid and less prone to fatigue or deformation during high-speed operation.

For short printing runs (low print runs): 0.15 mm or 0.20 mm can be selected to optimize material costs.

3. Substrate Type

Different paper types require different printing plate thicknesses.

4. Printing Quality Requirements

For companies pursuing the highest printing quality, plate thickness can subtly affect dot reproduction and registration accuracy. Thicker plates are more stable during plate mounting and printing, with less deformation, which is advantageous for high-precision four-color printing. Thinner plates may experience slight elastic deformation under pressure, slightly affecting dot reproduction.

5. Cost-Effectiveness

Thickness is directly proportional to cost. While ensuring quality, selecting the thinnest thickness within the compatible range can effectively reduce material procurement costs and increase profit margins.
