CTCP Plates for UV Ink Printing

As the printing industry increasingly prioritizes environmental sustainability, efficiency, and compatibility with a variety of substrates, UV (Ultraviolet) ink has become favored for its rapid curing, low VOC emissions, and broad adaptability. CTCP (Computer-to-Conventional Plate) technology, known for its cost-effective platemaking process, continues to hold a notable position in certain markets. The integration of UV ink characteristics with the economic benefits of CTCP plates requires printing companies to strike a balance between performance and cost.

CTCP Plate Technology

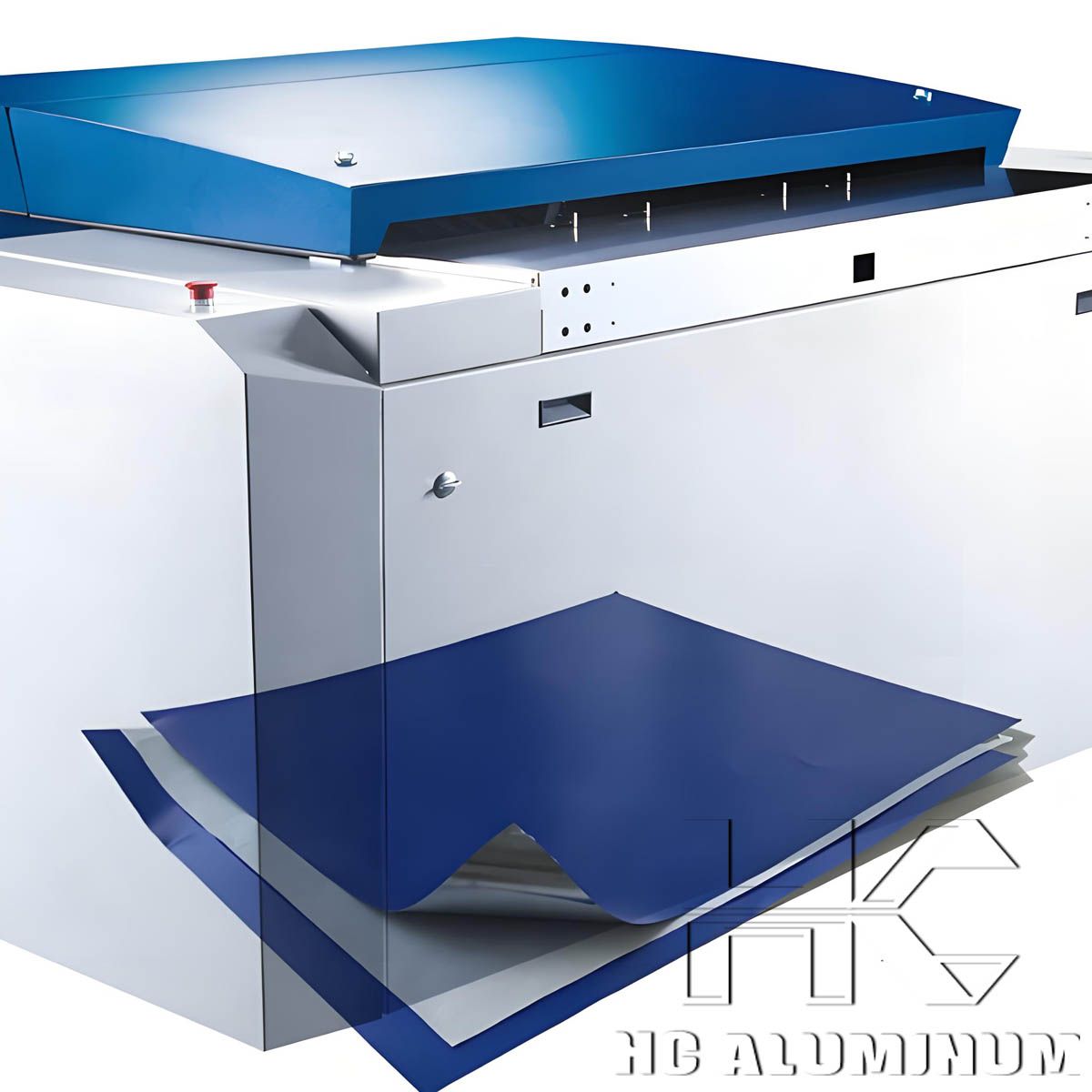

CTCP (Computer-to-Conventional Plate) refers to a computer-to-plate imaging process using traditional PS plates (Presensitized Plates) or, in some contexts, CTP plates, but typically denotes PS plates. The process uses a 405nm violet laser for exposure, achieving resolutions between 2400-4800 dpi. Compared to traditional PS plate exposure methods, CTCP boosts efficiency by approximately 30%, delivering high-precision halftone reproduction.

This technique involves laser imaging directly onto untreated PS plates, followed by standard chemical processing (development and fixing) to produce the final printing plate.

Characteristics of UV Ink Printing

UV ink cures almost instantly through a photochemical reaction initiated by UV light exposure.

• Environmental Performance: Solvent-free, low VOCs, compliant with green printing standards.

• Curing Efficiency: Instant curing supports inline production, significantly improving workflow speed.

• Print Quality: High resistance to abrasion and chemicals, vivid colors, and strong substrate adhesion.

• Application Fields: Widely used on non-absorbent materials such as plastic, metal, and glass.

CTCP Plates in UV Ink Printing: Synergy and Challenges

The key to integrating CTCP technology with UV ink printing lies in whether the chosen PS plate can withstand the aggressive characteristics of UV inks.

1. Synergistic Advantages:

(1)Cost Control: For short to medium-run UV print jobs, especially in cost-sensitive markets, CTCP offers a highly economical plate option.

(2)Flexibility: Print shops can switch between conventional and UV inks depending on job requirements, as CTCP processes remain consistent.

2. Key Challenges and Plate Requirements:

(1) Limited UV Chemical Resistance: Standard PS plates may not endure UV ink components, causing image edge degradation and reduced clarity.

(2) Durability Limits: Even if UV-compatible, PS plates tend to have lower run lengths under UV conditions compared to conventional ink environments.

(3) Halftone Reproduction and Stability: Ensuring the precision of CTCP laser imaging and the resolution capacity of PS plates is critical for fine details.

(4) Blanket Swelling and Ink Transfer: Certain UV ink ingredients can swell rubber blankets, affecting ink transfer and plate longevity—requiring holistic system considerations.

Offset CTCP Plate Application Areas

• High-End Packaging Printing: Such as cosmetic boxes, perfume packaging, health product containers, and cigarette packs.

• Publishing and Commercial Printing: Including books, newspapers, magazines, premium business cards, and corporate annual reports.
